PPL Pacific Class 400 Jackup Drill Rig Info/Jobs.

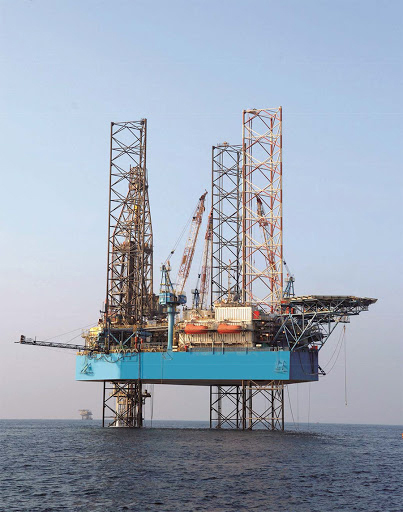

Hakuryu-14 is a 400-feet operating water depth self-elevating cantilever jack-up drilling rig, built by PPL Shipyard in 2018 using a Baker Marine Design, and delivered in January 2018.
HAKURYU-14 is a 400 ft operating water depth self-elevating cantilever jack-up drilling rig, built by PPL Shipyard Pte. Ltd. using the Baker Marine Design. The cantilever design allows the rotary table to be skidded out to a maximum of 70 ft from the transom and 15 ft from the centre line.
Rig Name: Hakuryu-14
Owner: BOT Lease Co., Ltd.
Manager:
Japan
Drilling Co., Ltd.
Rig Type: Jackup
Sub Type: Independent Leg Cantilever
Jackup Type: High-Specification
Max Water Depth (ft): 400
Max Drill Depth (ft): 35,000
Dimensions (ft): 236 x 224 x 27
Leg Length (ft): 532
Competitive: Yes
Current Location:
Country: Indonesia
Region: South East Asia
Rig Construction Details:
Rig Design: Baker Marine
Rig Model: Pacific 400
Year Built: 2018
Country of Build: Singapore
Yard Name: PPL Shipyard
Group Yard Name: SembCorp Marine Ltd.
Rig Contract Details:
Operating Status: Operational
Operator: Pertamina
Japan Drilling Company (JDC), on November 5, 2020, has secured a 1.5-year (18-month) contract extension for its jackup Hakuryu-14 with Indonesian oil and gas company PT Pertamina Hulu Mahakam. The rig will be used for drilling within the Mahakam Block, offshore Indonesia. This means that the rig is now committed until May 2022 and has two one-year options also available. The estimated the dayrate of the rig to be around US$ 70,000.
Pertamina had in November 2019 awarded a contract extension for the rig that was supposed to keep the jack-up unit busy in Indonesia until early December 2020. Jack-up drilling rig "HAKURYU-14" currently operating at Mahakam Block, Republic of Indonesia.
On November 18, 2019, Japanese offshore drilling contractor Japan Drilling Company has been awarded a contract extension for one of its jack-up rigs. JDC said its Hakuryu-14 rig would remain on a contract with Pertamina Hulu Mahakam at the Mahakam block, offshore Indonesia.
The contract extension is expected to keep the drilling rig with Pertamina until early December 2020. JDC did not share the dayrate agreed for the contract. Bassoe Offshore has estimated it to be around $80,000. This is an increase from the current dayrate estimated by Bassoe Offshore to be around $60,000.
On December 7, 2018, Japan Drilling Company (JDC) has informed that its recently built jack-up rig has started drilling for Pertamina in Indonesia. JDC said, its HAKURYU-14 jack-up rig started the drilling operation based on the contract with PT Pertamina Hulu Mahakam on December 6 at Mahakam Block, Republic of Indonesia.
Offshore Energy Today reported in August, based on VesselsValue data, that Pertamina had hired the Hakuryu-14 jack-up drilling rig on a one-year term.
This is the newest rig in JDC’s fleet, delivered in January this year. The company is still waiting for the delivery of one rig, the Hakuryu-15. The contract for the construction of the rig was awarded to Sembcorp Marine’s PPL Shipyard in November 2014. Also, while Pertamina has started drilling, one other operator in Indonesia, Ophir Energy, has completed an exploration well there. Ophir on Friday confirmed it had made a gas discovery at its Paus Biru-1 exploration in the Sampang PSC offshore Indonesia.
The well has been plugged and abandoned as a gas discovery and plan of development will now be prepared for submission to the regulator for approval, Ophir said.
On August 17, 2018, Indonesian state-owned oil and natural gas corporation Pertamina has reportedly hired one of JDC’s jack-up rigs. Pertamina has hired the Hakuryu-14 jack-up drilling rig, owned by Japanese offshore drilling company JDC. The rig has, reportedly, been hired on a one-year term contract. VesselsValue’s data indicates that the Hakuryu-14 is expected to begin work on September 1, 2018, and end it on August 30, 2019. The contract for the drilling rig also includes a one-year extension option.
The contract for the construction of the rig was awarded to Sembcorp Marine’s PPL Shipyard in November 2014.
HAKURYU-14 is a high standard unit sized for large Variable Deck Load (VDL), useful deck space, 150 Person On Board (POB), full preload jacking capability, deep water drilling operation (400 ft water depth), deep drilling (35,000 ft drilling depth), High Pressure High Temperature (HPHT) drilling and zero discharge operation.
Design: PPL Pacific Class 400: 3 legs self-elevating, cantilever type mobile offshore drilling unit.
Classifications Held: Classified by American Bureau of Shipping (ABS 2014), Maltese Cross A1, Self-Elevating Drilling Unit, IMO Code of Construction and Equipment of Mobile Offshore Drilling Unit (MODU Code 2009). Classification of Drilling Systems (CDS 2012)
Flag: Panama.
Main Dimensions And Particulars:
Hull Overall Length (molded): 236.5ft (72.1m)
Hull Breadth (molded): 224.4ft (68.4m)
Hull Depth (molded): 27.9ft (8.5m)
Leg Length: 532.5ft (162.3m)
Usable Leg Length (below hull): 461.3ft (140.6m)
Footing Area /each Spud Can: 2,493 sq.ft. (231.6 m2)
Max Combined Drilling Load on Cantilever: 1,066 tons @60ft center
907 tons @70ft center
Drilling Envelope: 70ft (21.3m) / ± 15ft (4.6m)
Displacement (Load Line):.45,046.52 kips (20,429.26 tons)
Helideck / D-value / t-value: ... Sikorsky S-61N & S92 / 22.2m / 12.6 tons
Accommodation: 150 personnel
Design Criteria:
Max. Operating water depth: ……. 400ft with 50 ft air gap & 10ft penetration
Max. Rated drilling depth: 35,000ft(10,668m)
Max. Air gap: 100 ft (30.4m)
Maximum Gross Variable Load:
Jacking: 6,921 kips (3,139 tons)
Storm: 6,066kips (2,751 tons)
Drilling: 8,085 kips (3,667 tons)
Hook Load: 2,000 kips (907 tons)
Rotary Load: 2,000 kips (907 tons)
Setback Load: 1,250 kips (567 tons)
Conductor Tension Load: 496 kips (225 tons)
Storage Capacities:
Fuel oil: 3,642 bbls (579m3)
Drill water: 21,913 bbls (3,450m3)
Potable water: 3,585 bbls (560m3)
Liquid mud: 4,500 bbls (715m3)
Base Oil: 1,273 bbls (202m3)
Brine: 1,291 bbls (205m3)
Bulk mud: 7,098 ft3(201m3)
Bulk cement: 7,098 ft3 (201m3)
Sack storage: 5,000 sacks
Power Equipment:
Main Engines: Five (5) Caterpillar C175-16 engines,
1,930 BKW @1,200 rpm
Main Generators: Five (5) Kato 6P6-3300 generators,
2,250 kVA @1,200 rpm, AC 690 V, 60 Hz
Emergency Engine: Caterpillar 3508B engine,
1,298 hp @1,800 rpm
Emergency Generator: Leroy Somer LSA-49.1 generator,
1,020 KVA @1,800 rpm, 480 V, 60 Hz.
Vessel Management System:
Centralized access and control system covering Alarm monitoring system,
Tank level monitoring and remote valve control for pre loading operation.
Drilling Equipment:
Draw Works: NOV ADS-30Q, 6,000hp (Four 1500 HP, 690 V AC motors)
2" diameter wire.
Derrick: NOV, 40’ x 40’ base, Max. load: 2,200 kips. Racking capacity: 366
of 5-7/8" drill pipe + 10 stands of 9-1/2” Drill collar + 3 BHA
Offline Standbuilding System: Yes
Vertical Pipe Handling System: NOV Bridge Racker BR-10
Crown Block: NOV CBC-1100, 2,200kips capacity, with 10 sheaves.
Traveling Block: NOV HTB-1100, 2,200 kips, with 7 x 72” sheaves.
Top Drive: NOV TDS-1000, 7,500 psi WP, 2,000 kips, One1,150 hp 690 V
AC motor. Installed with a retractable dolly.
Rotary Table: NOV 49-1/2”RT RST, hydraulic motor driven.
Iron Roughneck: Two(2) NOV ST-120, Size range 3-1/2” to 10”
Catwalk Shuttle: NOV / CES-P10-45, 10MT SWL / Range 2-7/8" - 36"
Pipe Handling Crane: NOV Knuckle Boom Crane/ PC1891K, 12MT SWL,
3.5MT with yoke 3m to 25m, Pipe gripper 3” to 20”
Control System: NOV CyberbaseTM.
Well Control Equipment:
Diverter: GE oil and Gas(Vetco), KFDJ 500 psi WP
BOPs: 18-3/4” BOP Stack
Cameron DL 18-3/4” 10,000 psi WP Annular.
Two (2) Cameron TL 18-3/4” 15,000 psi WP Double Ram.
Two (2) 3” x 15,000 psi WP Choke Line
Two (2) 3” x 15,000 psi WP Kill Line.
BOP Control: CAD Control Systems.
Choke Manifold: FORUM 15,000 psi WP choke & kill manifold, sour gas
service.
Two (2) MASTER FLO manual operated choke.
Two (2) MASTER FLO Remote operated chokes.
Mud Circulation Equipment:
Mud Pumps: Three (3) NOV 14-P-220, 7,500 psi WP,
Mud Treatment System:
Gumbo Separator: One (1) Dual gumbo separator
Primary Shakers: Four (4) Brandt VSM300 shale shakers.
Mud Conditioner: NOV-Brandt Desander 1,500GPM, Desileter 960
GPMdesilter cone assembly (4” x 24 cones).
Degasser: One(1) Brandt DG-12 degasser.
Mud Gas Separator: FORUM atmospheric mud gas separator suitable
for H2S service, Ventline:12"
Jacking Equipment:
Jacking Units: 36 NOV-BLM D88 jacking units with 72 active pinions.
Normal Jacking: 43,632 kips (19,800 tons)
Preload Jacking: 58,752 kips (26,640 tons)
Drilling Condition: 81,288 kips (36,864 tons)
Storm Condition: 108,288 kips (49,104 tons)
Other Equipment:
Deck Cranes: Three (3) Favco Diesel-Hydraulic deck cranes.
Two(2) 75tons@7.5m, 22.4 tons @36.6m(Onboard)
One(1) 50tons @7.5m, 10tons @36.6m(Onboard)
Water Makers: Two (2) Sasakura VVC-60L-EL water makers,
Nominal 60 Kl/day each.
Anti-pollution Equipment:
Sewage Treatment: Hamworthy / ST13-14 (Vacuum Biological Type)
Oily water separator: TURBULO/TMPB-10, 10ton/hrs
Garbage Compaction: ENVIRO PAK 3000EMR Hyd Press
Anchors: Four (4) 6 tons Flipper Delta type anchors.
Anchor Winches:
Four (4) x Brothl anchor winches.
Maximum pull 89.9 kips (40.78 tons).
Maximum holding 224.8 kips (101.97tons) at 1st layer.;
Owner: BOT Lease
Rig manager: Japan Drilling
Type: Jackup
Design category: Jackup 400-449ft IC
Full design name: PPL Pacific Class 400
IMO: 9762584
Class: ABS
Constructed at: PPL Shipyard
Year in SVC: 2018
Latest upgrade: ----
Competitive: Yes
SPS due date: ----
Contract status:
Status: Drilling
Operator: Pertamina
Country: Indonesia
Region: Southeast Asia
Day rate: 60000
Next available: 01.06.2022
Available until: ----
Backlog: 30820000
Value: Value ($m):
1) Contract detail:
Country: Indonesia
Day rate: 70 000
Start date: 07.12.2020
End date: 31.05.2022
Operator: Pertamina
Location: ----
Number of wells: ----
Variable rate: No
Water depth: ----;
Work type: Development Drilling
Duration (days): 541
Comment: Estimated dayrate. 2 x 1-year options also available...
2) Contract detail:
Country: Indonesia
Day rate: 80 000
Start date: 07.12.2019
End date: 06.12.2020
Operator: Pertamina
Location: ----
Number of wells: ----
Variable rate: No
Water depth: ----
Work type: Development Drilling
Duration (days): 365
Comment: Estimated dayrate. Exercised option from previous...
3) Contract detail:
Country: Indonesia
Day rate: 60 000
Start date: 06.12.2018
End date: 06.12.2019
Operator: Pertamina
Location: ----
Number of wells: ----
Variable rate: No
Water depth: ----;
Work type: None type
Duration (days): 365
Comment: Estimated dayrate. Plus 1-year option.
